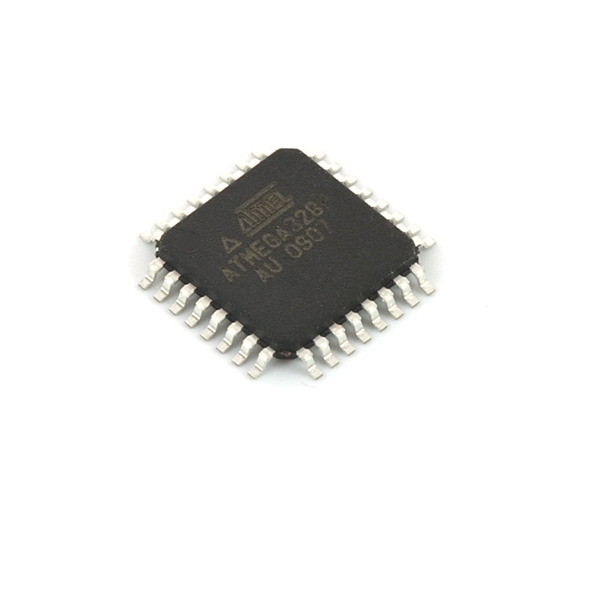

DescriptionEvery hardware engineer eventually reaches the limits of off-the-shelf development boards. When your project demands a smaller footprint, lower power consumption, or a highly specific form factor, you need to design your own Printed Circuit Board (PCB). The ATmega328P-AU is the perfect silicon for that transition.Whether you are designing ultra-compact edge computing nodes for an electric motorcycle battery management system, or teaching advanced SMD soldering techniques during the Electronics Bootcamp, this chip is the industry standard for embedded education and prototyping.The “Arduino” Core in a Tiny FootprintIf you have ever written a line of code for an Arduino Uno or Arduino Nano, you already know how to program this chip. The ATmega328P is the exact same microcontroller used on those iconic boards. By integrating this TQFP-32 chip directly into your custom PCB design, you retain 100% compatibility with the Arduino IDE, Wire.h, SPI.h, and thousands of community libraries, without having to embed a bulky, expensive pre-built board into your final product.Surface Mount Design (TQFP-32)Unlike the large, through-hole DIP-28 version, the -AU variant comes in a Thin Profile Quad Flat Package (TQFP-32). This surface-mount package features 32 tiny pins spaced 0.8mm apart. It is specifically designed to be soldered directly to the surface pads of a PCB using a hot air rework station or drag-soldering techniques, making it an excellent component for practicing intermediate manufacturing skills.Note: As an SMD component, it cannot be plugged directly into a standard breadboard without an adapter plate.Bootloading and ClockingBecause this is a raw, factory-fresh IC, it does not come with the Arduino bootloader pre-installed. To program it via USB, you will first need to flash the bootloader using an In-System Programmer (ISP) or a spare Arduino board acting as an “Arduino as ISP.” Additionally, to run it at the standard 16MHz Arduino speed, you will need to pair it with an external 16MHz quartz crystal and two 22pF load capacitors.Key Features:Ultra-Low Power: Features advanced sleep modes, making it perfect for battery-operated remote IoT sensors.Rich Peripherals: Includes 6 PWM channels, a 10-bit Analog-to-Digital Converter (ADC) with 8 channels, and a programmable watchdog timer.High Endurance Memory: The internal EEPROM safely stores up to 100,000 write/erase cycles for saving configuration data between power cycles.Technical Specifications:Microcontroller Core: 8-bit AVRFlash Memory (Program Space): 32 KB (0.5 KB used by bootloader if installed)SRAM: 2 KBEEPROM: 1 KBOperating Voltage: 1.8V to 5.5VDigital I/O Pins: 23 (6 provide PWM output)Analog Input Pins: 8 (10-bit resolution)DC Current per I/O Pin: 40 mAPackage Type: 32-lead TQFP (SMD)Ideal Applications:Custom Arduino-compatible PCBs and miniaturized wearablesRemote agricultural and environmental sensor data loggersEducational courses focusing on embedded C programming and surface-mount solderingDedicated hardware controllers for automated relays and motor drivers
