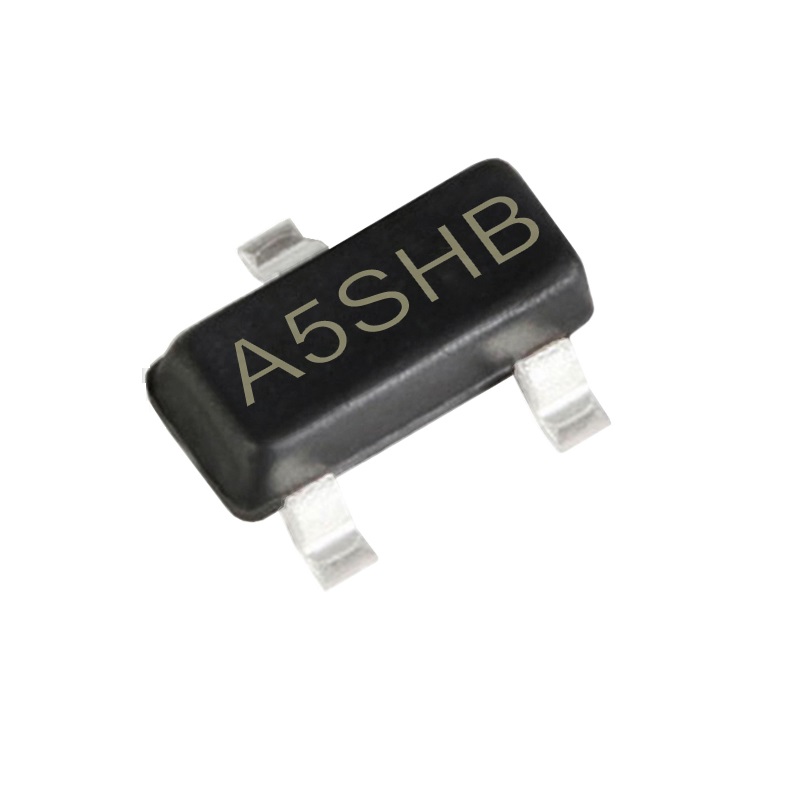

SI2305 P-channel MOSFET SMD SOT-23 COM11

DescriptionModern portable electronics require components that can route heavy currents without wasting battery life as heat. The SI2305 P-Channel MOSFET is specifically engineered for high-efficiency power management. It is a logic-level compatible, surface-mount field-effect transistor that bridges the gap between delicate microcontrollers and power-hungry peripherals.The Ultimate High-Side SwitchBecause it is a P-Channel device, the SI2305 is placed between your positive power supply and your load, making it perfect for high-side switching. What sets this MOSFET apart is its massive -4.1A current capacity coupled with a very low RDS(on) (drain-source on-resistance). This means that when the MOSFET is turned fully “on,” it acts almost like a solid wire, delivering maximum power to your motors, heavy LED arrays, or communication modules while running incredibly cool.Logic-Level CompatibleLike its N-Channel counterparts, the SI2305 is voltage-controlled and draws practically zero continuous control current. It features a low gate threshold voltage, meaning it can be easily triggered by standard 3.3V and 5V logic controllers like an ESP32, Arduino, or Raspberry Pi. Note: To turn a P-Channel MOSFET “on,” the gate voltage must be pulled low (relative to the source).Compact SOT-23 FootprintDespite its heavy current capabilities, the SI2305 is housed in an ultra-compact SOT-23 surface-mount package. Featuring the highly recognizable top mark A5SHB, its universally adopted footprint integrates perfectly into high-density PCB layouts, making it ideal for wearables, portable IoT devices, and compact motor controllers.Circuit Best PracticesWhen using the SI2305 for high-side switching, remember to place a pull-up resistor (e.g., 10kΩ) between the gate and the source. This ensures the MOSFET remains firmly turned “off” when your microcontroller’s logic pin is floating during startup. Additionally, if you are driving inductive loads like motors or relays, always include a flyback diode to protect the MOSFET from reverse voltage spikes.Key FeaturesHigh Current Capacity: Easily drives heavy loads up to -4.1A, eliminating the need for bulky relays in many applications.Ultra-Low On-Resistance: Minimizes power loss and heat generation, prolonging battery life in portable electronics.Logic-Level Gate: Easily controlled by standard 3.3V and 5V microcontrollers without drawing continuous gate current.Technical SpecificationsTransistor Polarity: P-ChannelDrain-Source Voltage (VDS): -20V MaximumContinuous Drain Current (ID): -4.1A MaximumPulsed Drain Current (IDM): -15A MaximumGate-Source Voltage (VGS): ±8VStatic Drain-Source On-Resistance (RDS(on)): < 65mΩ (at VGS = -4.5V)Power Dissipation (PD): 1.2WPackage Type: SOT-23 (Surface Mount)Common Top Marking Code: A5SHB / S5Ideal ApplicationsHigh-Side Load Switching: Controlling power delivery to heavy sensors, GPRS modules, and bright LED arrays.Power Management: Implementing reverse polarity protection and battery charge/discharge switching in portable electronics.Motor Control: Serving as the high-side drivers in custom H-bridge motor controller circuits.Electronics Repair: Replacing faulty A5SHB-marked P-Channel MOSFETs in laptops, drone ESCs, and commercial power supplies.
