2SC1623 NPN Transistor SOT-23 SMD TRA11

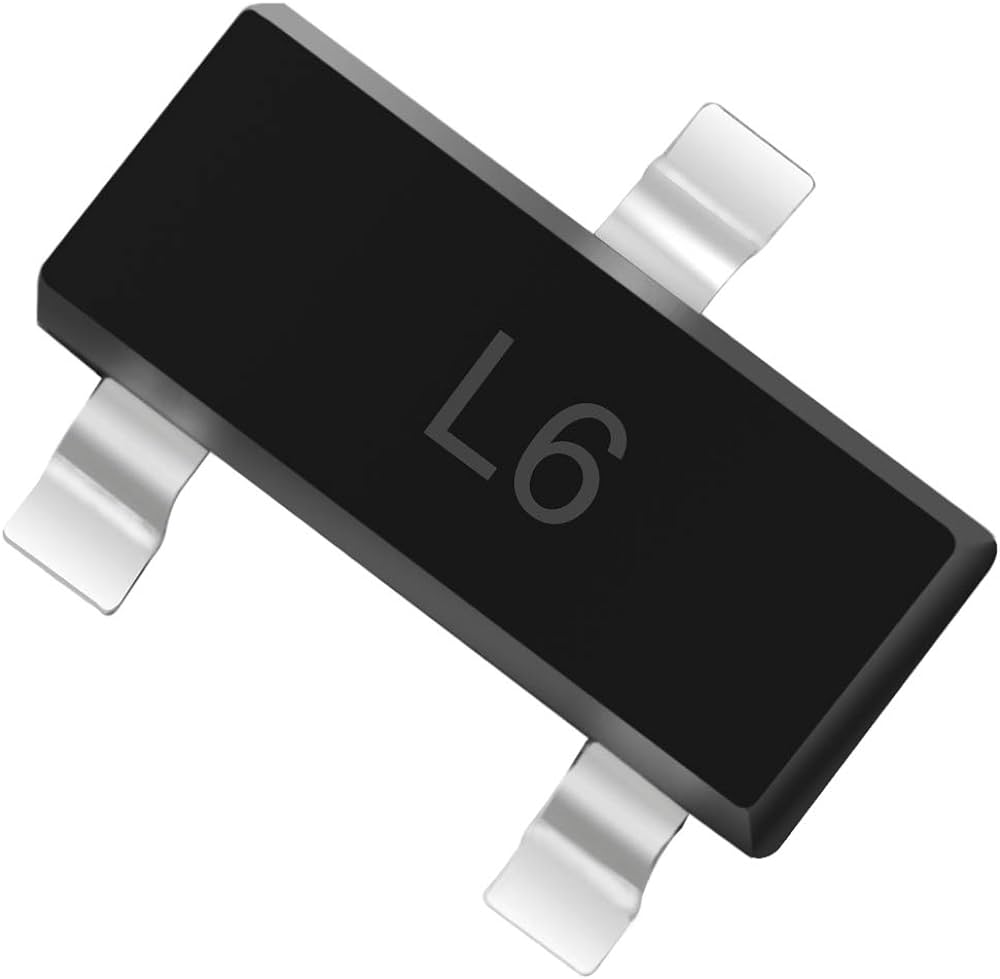

DescriptionClassic audio circuits and modern logic boards both require discrete components that provide clean, predictable signal reproduction. The 2SC1623 NPN Bipolar Transistor is a time-tested, general-purpose component specifically optimized for audio frequency (AF) voltage amplification and reliable low-power switching.The Audio Frequency SpecialistWhile some transistors are built solely for switching heavy loads, the 2SC1623 is designed for finesse. It is highly favored by audio engineers and DIY hobbyists for use in the pre-amplifier driver stages of audio equipment. By taking tiny analog signals from microphones, guitar pickups, or analog sensors, this transistor scales the waveform up cleanly, ensuring the rest of your circuit can process the audio without introducing heavy distortion or background noise.Compact SOT-23 FootprintUtilizing a modern, surface-mount package allows you to shrink the size of your PCB dramatically compared to older through-hole designs. The SOT-23 package offers excellent thermal stability in a miniature footprint. Featuring the widely recognized top mark L6, this component is easy to identify during manual prototyping, inventory sorting, or automated pick-and-place assembly.Circuit Best PracticesFor sophisticated audio design, the 2SC1623 pairs perfectly with its PNP complement, such as the 2SA812. Together, they form the backbone of highly efficient Class B or Class AB push-pull output stages. If you are using it strictly as a low-side logic switch, remember to calculate and place a suitable base resistor to ensure the transistor fully saturates without drawing excessive current from your logic controller.Key FeaturesExcellent Linearity: Provides clean, distortion-free amplification for low-frequency audio signals.High DC Current Gain: Ensures efficient signal scaling even with very low base currents.Miniature Footprint: The SOT-23 SMD package optimizes valuable PCB real estate while maintaining excellent electrical performance.Technical SpecificationsTransistor Polarity: NPN BJTCollector-Emitter Voltage (VCEO): 50V MaximumCollector-Base Voltage (VCBO): 60V MaximumEmitter-Base Voltage (VEBO): 5V MaximumContinuous Collector Current (IC): 100mAPower Dissipation (PD): 200mWDC Current Gain (hFE): 90 to 600 (typical, varies by classification)Package Type: SOT-23 (Surface Mount)Top Marking Code: L6Ideal ApplicationsAudio Amplification: Pre-amplifier and driver stages for small radios, intercoms, and custom speakers.Signal Conditioning: Scaling small analog sensor outputs for cleaner data processing by an ADC.Low-Side Load Switching: Routing ground connections for logic-level LEDs, small relays, and indicator displays.Electronics Repair: Replacing faulty L6-marked NPN transistors in legacy audio equipment and commercial logic boards.
