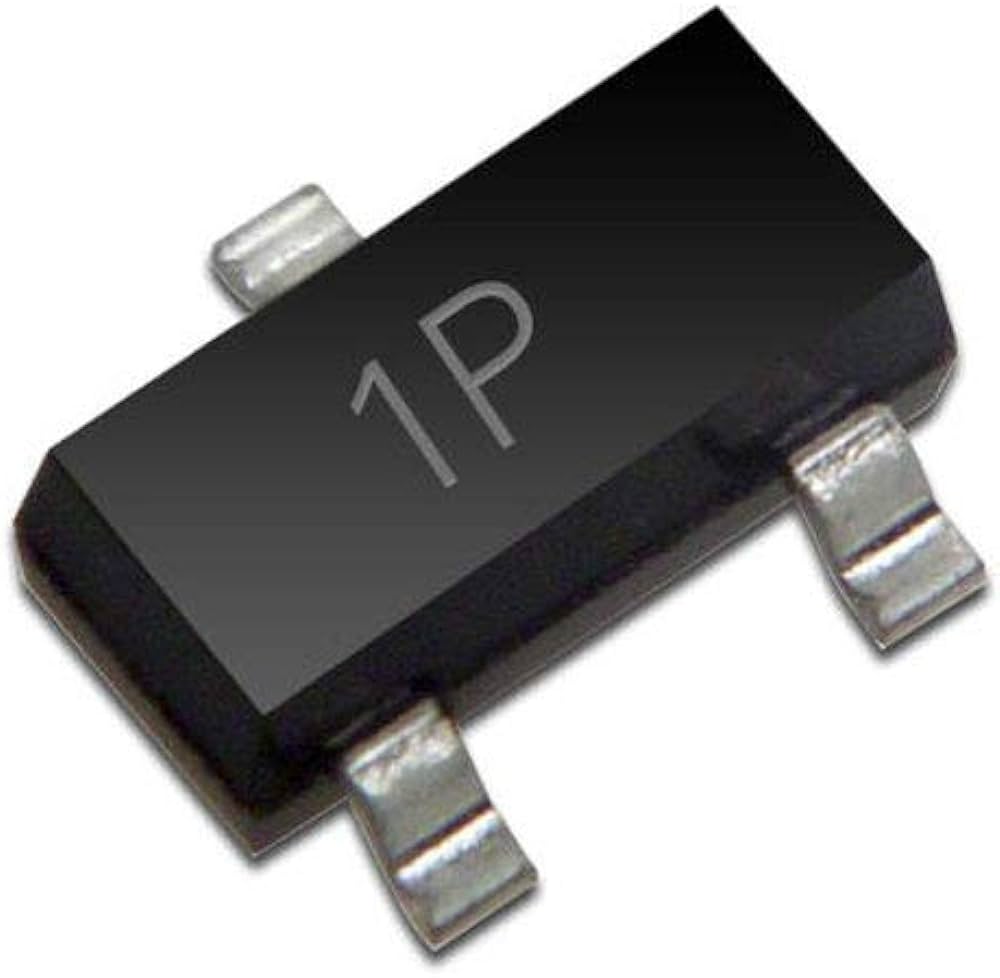

MMBT2222A Transistor NPN SOT-23 SMD COM11

DescriptionEvery electronics designer needs a go-to, general-purpose transistor in their toolkit. The MMBT2222A NPN Bipolar Transistor is exactly that. It is the highly popular, surface-mount equivalent of the classic 2N2222A, offering excellent switching speeds, reliable current amplification, and robust power handling for a massive variety of everyday circuit applications.The Ultimate General-Purpose SwitchWhile standard small-signal transistors might max out at 100mA, the MMBT2222A comfortably handles continuous collector currents up to 600mA. This makes it strong enough to directly drive demanding loads—like small DC motors, solenoids, and heavy mechanical relays—straight from the low-power logic pins of your microcontroller. It is also highly effective in linear applications, serving well in audio and signal amplification stages.Compact SOT-23 FootprintModern electronics demand smaller footprints without sacrificing reliability. The SOT-23 surface-mount package allows you to integrate this powerful little transistor into space-constrained IoT devices, wearables, and custom robotics boards. Featuring the industry-standard top mark 1P, this component is easy to identify during manual prototyping or automated pick-and-place assembly.Circuit Best PracticesLike all bipolar junction transistors, the MMBT2222A is a current-controlled device. When using it as a switch to control a heavy load, always calculate and implement an appropriate base resistor. This ensures that the transistor reaches full saturation (minimizing heat and voltage drop) while protecting your microcontroller’s delicate GPIO pins from drawing excessive current.Key FeaturesMedium Power Handling: Safely drives loads up to 600mA, eliminating the need for bulky MOSFETs in many medium-duty scenarios.Fast Switching Speeds: Excellent for high-frequency PWM (Pulse Width Modulation) control of motors and LEDs.Miniature Footprint: The SOT-23 SMD package optimizes valuable PCB real estate while maintaining great thermal stability.Technical SpecificationsTransistor Polarity: NPN BJTCollector-Emitter Voltage (VCEO): 40V MaximumCollector-Base Voltage (VCBO): 75V MaximumEmitter-Base Voltage (VEBO): 6V MaximumContinuous Collector Current (IC): 600mAPower Dissipation (PD): 350mWDC Current Gain (hFE): 100 to 300 (typical)Package Type: SOT-23 (Surface Mount)Top Marking Code: 1PIdeal ApplicationsLoad Switching: Triggering 5V and 12V relays, solenoids, and high-brightness LEDs.Motor Control: Driving small DC motors via PWM signals from an Arduino or ESP32.Signal Amplification: Serving as a reliable pre-amplifier or driver stage in audio circuits.Electronics Repair: Replacing faulty 1P-marked NPN transistors in commercial logic boards, toys, and power supplies.
