S8050 NPN Transistor SOT-23 SMD COM11

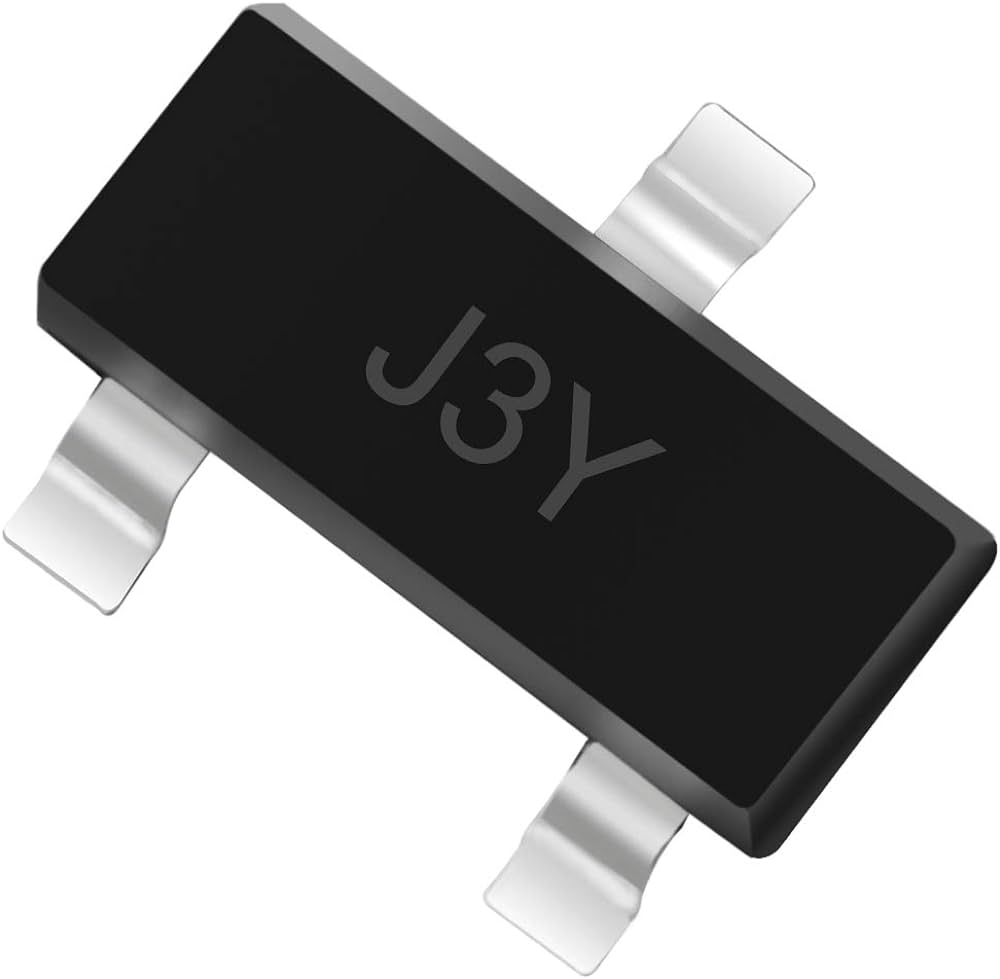

DescriptionEvery electronics workbench needs a robust, general-purpose transistor capable of handling more demanding loads. The S8050 NPN Bipolar Transistor is exactly that component. Engineered for superior current-handling capabilities, it is highly favored for a massive variety of DIY electronics and commercial repair applications.The High-Current SwitchMany standard NPN transistors max out at around 100mA to 200mA, which limits their use to logic signals and single LEDs. The S8050 dramatically increases your switching ceiling. With a continuous collector current rating of 500mA, it acts as a robust electronic switch capable of powering small robotics motors, mechanical relays, and high-brightness LED arrays directly from your microcontroller’s logic pins.Compact SOT-23 FootprintTo build professional, miniature electronics, you need to minimize board space. This surface-mount SOT-23 version of the S8050 provides excellent thermal performance in an ultra-compact footprint. It features the universally recognized top mark J3Y, making component identification simple during inventory management, automated assembly, or manual board repairs.Circuit Best PracticesBecause the S8050 handles higher currents, it also requires an adequate base current to achieve full saturation (turning completely “on” as a switch). Always calculate your base resistor carefully to ensure your microcontroller can supply the necessary current. For audio applications, this transistor pairs flawlessly with its PNP complement, the S8550, to create efficient Class B or Class AB push-pull amplifiers.Key FeaturesHigh Current Handling: Drives loads up to 500mA, eliminating the need for bulkier power transistors in medium-duty applications.Low Saturation Voltage: Highly efficient when used as a switch, minimizing power loss and heat generation.Miniature Footprint: The SOT-23 SMD package optimizes valuable PCB real estate.Technical SpecificationsTransistor Polarity: NPN BJTCollector-Emitter Voltage (VCEO): 25V MaximumCollector-Base Voltage (VCBO): 40V MaximumEmitter-Base Voltage (VEBO): 5V MaximumContinuous Collector Current (IC): 500mAPower Dissipation (PD): 300mWDC Current Gain (hFE): 120 to 400 (typical)Package Type: SOT-23 (Surface Mount)Top Marking Code: J3YIdeal ApplicationsMotor Control: Driving small DC motors in custom robotics and RC vehicles.Relay Switching: Triggering 5V and 12V mechanical relays safely from microcontroller logic pins.Audio Amplification: Serving as an output driver in push-pull audio amplifier circuits.Electronics Repair: Replacing burnt-out J3Y-marked NPN transistors in toys, power supplies, and commercial logic boards.
