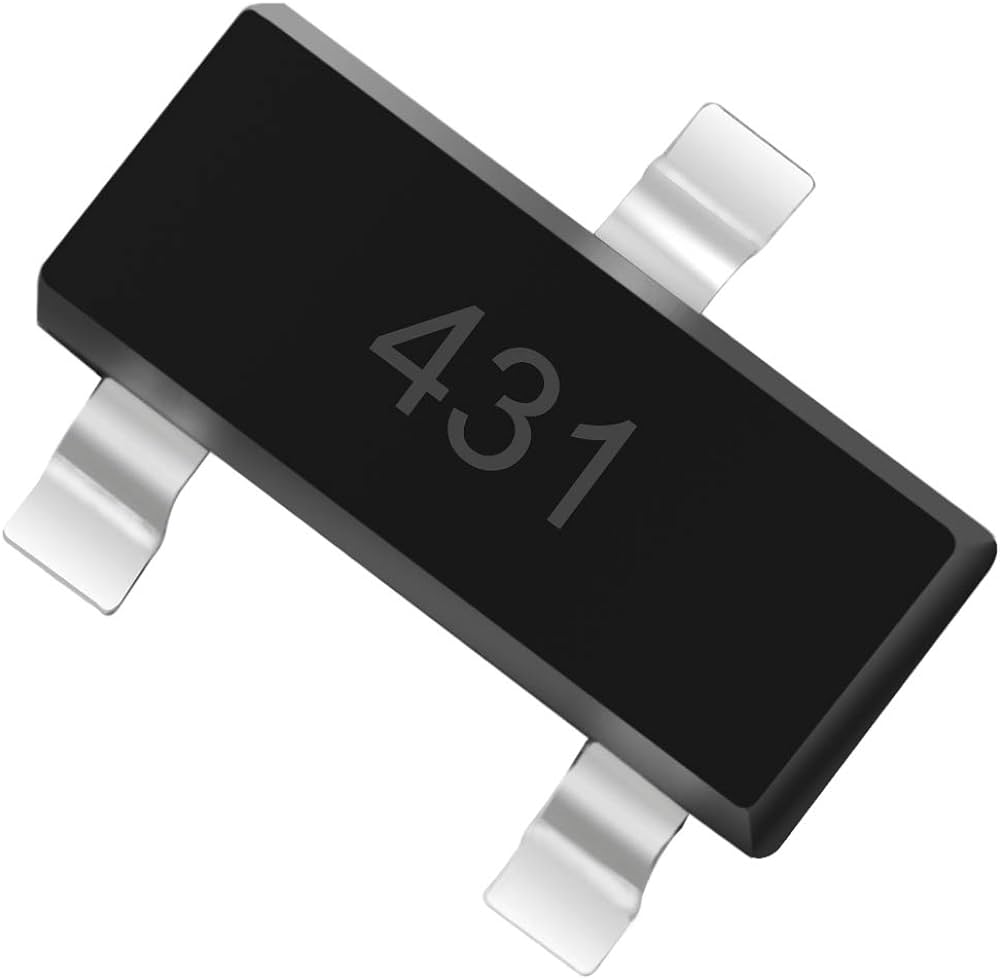

DescriptionIn analog electronics and power supply design, maintaining a precise, unwavering reference voltage is critical. The TL431 is one of the most widely used integrated circuits in the world for this exact purpose. While it is technically a programmable shunt voltage reference, it is easiest to think of it as a highly precise, adjustable Zener diode.The “Adjustable Zener” ConceptStandard Zener diodes are manufactured with fixed breakdown voltages (like 3.3V, 5.1V, or 12V), and they can fluctuate significantly based on temperature. The TL431 solves this problem. It features an internal, highly stable 2.5V reference. By connecting a simple voltage divider (two standard resistors) to its reference pin, you can set the exact shunt voltage you need, anywhere from 2.5V up to 36V. This allows you to create highly customized, non-standard voltage rails with exceptional thermal stability.Essential for SMPS DesignIf you open almost any modern wall adapter, laptop charger, or isolated Switch-Mode Power Supply (SMPS), you will find a TL431. It is the industry standard for bridging the gap between the output voltage and the primary-side switching controller. Typically paired with an optocoupler, the TL431 monitors the output line; if the voltage drops slightly under heavy load, the TL431 instantly adjusts the current through the optocoupler, signaling the main controller to pump more power and keep the output perfectly regulated.Space-Saving SOT-23 PackageModern circuit board design demands efficiency. This TL431 is packaged in a tiny, 3-pin SOT-23 format specifically for surface-mount technology (SMT) assembly. It takes up a fraction of the space of traditional through-hole TO-92 packages, allowing you to shrink the footprint of your power regulation circuits without sacrificing performance or thermal handling.Key Features:Fully Programmable: Set the exact output voltage you need (2.5V to 36V) with just two external resistors.Exceptional Stability: Features a sharp turn-on characteristic and low dynamic output impedance compared to standard Zener diodes.High Sink Capacity: Can safely sink between 1mA and 100mA of current, making it versatile for both reference and direct regulation tasks.Technical Specifications:Component Type: Adjustable Precision Shunt RegulatorPackage Form: SOT-23 (Surface Mount)Pin Count: 3 Pins (Reference, Anode, Cathode)Programmable Output Voltage: 2.5V to 36VSink Current Range: 1mA to 100mAOutput Impedance: 0.22Ω (Typical)Operating Temperature Range: -40°C to 85°C (Typical commercial range)Ideal Applications:Providing the feedback loop in isolated flyback power supplies and chargersCreating custom, ultra-stable voltage references for Analog-to-Digital Converters (ADCs)Replacing standard Zener diodes in high-precision measurement circuitsBuilding precision current limiters and constant-current sources
